Edge Banding Machine Supplier End Cutting Fine Trimming Time Efficiency
We produce a large number of products every day with fast delivery. Support any custom color, LOGO, engine, air conditioning and other configurations. Customization available even for 1 piece.

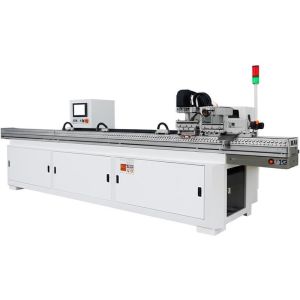

BHM START 300 High-speed Fully Automatic Edge Banding Machine
The New BHM START 300 automatic edge banding machine is suitable for board shops and small processing factories, featuring vertical display control panels and hand-cranked digital display adjustment for pressure beam height.
The machine uses a large-capacity glue pot for continuous edge sealing. Simply feed the straight plate through the process of gluing, pressing, rough trimming, end trimming, corner trimming, large diameter vacuuming, secondary scraping and buffing - completing plate molding in one pass.
Specifications
| Outline dimension | 3500*750*1500mm | Conveyor speed | 18~24m/min |
| Machine weight | 1000KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
Key Features
Encoder: This advanced encoder controls all machine functions with quick responsiveness and a low failure rate for dependable performance.
Intelligent Control: A PLC-based microcomputer control system is integrated, utilizing time control for improved operational stability and safety.
Glue System: The glue tank heats and applies hot melt adhesive evenly via a suction structure, ensuring superior adhesion.
End Cutting: Precise edge cutting is guaranteed with single guide rails placed at both ends of the machine.
Fine Trimming: With a high-speed slanted cutting motor and a durable alloy disc, the trimming process is adjustable and ensures smooth edges.
For consumers:
Our woodworking machinery is affordable, customizable, and available in various models. Whether you need small or large woodworking machinery, we can perfectly meet your requirements.
For suppliers:
Our woodworking machinery has redefined industry standards with innovative features and durability. We provide sufficient profit margins and 1-3 years of after-sales service. Some parts can be shipped by air for faster delivery. We conduct pre-delivery testing to ensure product quality and offer free promotion support in your county
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao City, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.
Q4: Is this machine easy to operate for first-time users?
A4: We provide instructional videos and English manuals. Free professional guidance is available until you can operate the machine proficiently.
Q5: What's your MOQ and delivery terms?
A5: MOQ is 1 set. We ship directly to your country's port - please provide your port name for best shipping rates.
Q6: How is your after-sales service?
A6: Our sales team is available 24/7. We also offer overseas installation service.
Q7: What if my machine needs repair?
A7: We provide free online training. For major issues during warranty, we will repair the machine.
Shipping Information
The edge banding machine will be carefully packaged and shipped within 15-30 days of order confirmation. Delivery times may vary depending on your location and shipping method. Tracking details will be provided once the shipment is dispatched, and we ensure secure packaging to prevent damage during transit.
