Edgebanding Machines Flat Scraping Scrape Clean Function Used Condition
We produce a large number of products every day with fast delivery. Support any custom color, LOGO, engine, air conditioning and other configurations. Customization available even for 1 piece.

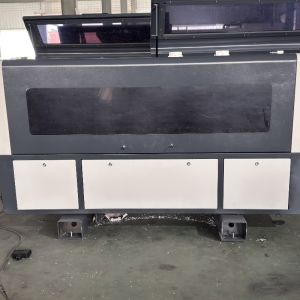

BHM START 300 High-speed Fully Automatic Edge Banding Machine
The New BHM START 300 automatic edge banding machine is suitable for board shops and small processing factories, featuring vertical display control panels and hand-cranked digital display adjustment for pressure beam height.
The machine uses a large-capacity glue pot for continuous edge sealing. Simply feed the straight plate through the process of gluing, pressing, rough trimming, end trimming, corner trimming, large diameter vacuuming, secondary scraping and buffing - completing plate molding in one pass.
Specifications
| Outline dimension | 3500*750*1500mm | Conveyor speed | 18~24m/min |
| Machine weight | 1000KG | Minimum width of board | 50mm |
| Working voltage | 380V/50Hz | Minimum length of board | 70mm |
| Total power | 7KW | Working pressure | 0.7Mpa |
| Plate thickness | 10-60mm | Edge banding thickness | 0.3~3mm |
Key Features
- Encoder: All machine functions are controlled by a highly responsive encoder, designed to minimize failure rates for consistent performance.

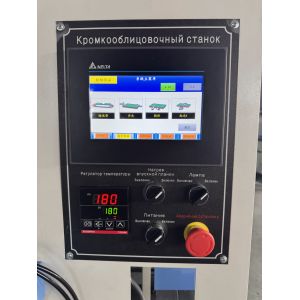

Intelligent Control: Features a standard PLC control system, using time-based principles to enhance stability and operational safety.
Glue System: A suction-based glue tank heats and applies hot melt adhesive evenly across the edges for superior adhesion.

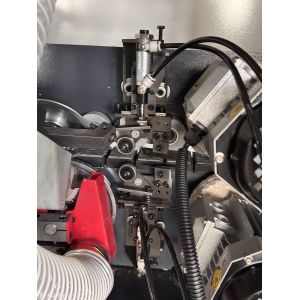

End Cutting: The machine utilizes single guide rails at both ends to achieve precise and accurate edge cutting.
Fine Trimming: With a fast, adjustable motor and alloy trimming disc, the machine delivers smooth and precise trimming results.
For consumers:
Our woodworking machinery is affordable, customizable, and available in various models. Whether you need small or large woodworking machinery, we can perfectly meet your requirements.
For suppliers:
Our woodworking machinery has redefined industry standards with innovative features and durability. We provide sufficient profit margins and 1-3 years of after-sales service. Some parts can be shipped by air for faster delivery. We conduct pre-delivery testing to ensure product quality and offer free promotion support in your country.
- Buffing: Polishing for smoother edge sealing sections.
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao City, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.
Q4: Is this machine easy to operate for first-time users?
A4: We provide instructional videos and English manuals. Free professional guidance is available until you can operate the machine proficiently.
Q5: What's your MOQ and delivery terms?
A5: MOQ is 1 set. We ship directly to your country's port - please provide your port name for best shipping rates.
Q6: How is your after-sales service?
A6: Our sales team is available 24/7. We also offer overseas installation service.
Q7: What if my machine needs repair?
A7: We provide free online training. For major issues during warranty, we will repair the machine.
Shipping Terms
Upon receiving the order, the edge banding machine will be shipped within 20-40 days. The exact delivery time will depend on the destination and shipping method selected. We will send you tracking details once your order has been shipped, and we ensure the equipment is safely packaged to avoid transit damage.
