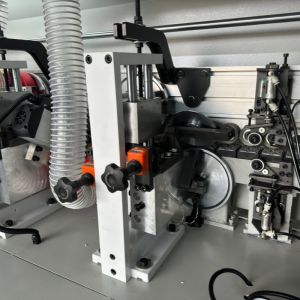

9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels

Ask Latest Price
Video Channel
Brand Name :BH
Model Number :0404
Certification :CE
Place of Origin :Qingdao,China
MOQ :1
Price :$7350
Payment Terms :T/T
Supply Ability :3000Units/Year
Delivery Time :7-40days
Packaging Details :5100*850*1600mm
Name :Edge Banding Machine
Size :5000*750*1500mm
Working voltage :380V/50Hz
Total power :13.5kw
Conveyor speed :18~24m/min
Working pressure :0.7MPa
Thickness :0.3~3mm
Minimum length of board :70mm
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description
We produce alarge numher of products everyday, fast deliver
Support any custom color, LOGO, engine, airconditioning and other confguration
1piece can also he customized
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
For consumers : Our Woodworking machineryare affordable, customizable, and come in a dvariety of models. Whether it is small or large woodworking machinery, they can perfectly meet your needs.
Supplier : Our Woodworking machineryare has redefined industry standards with innovative features, durability, We will provide you with sufficient profit margins and after-sales service for our products within 1-3 years. Some parts can be shipped by air, express delivery is faster, and we will provide you with testing before delivery to ensure product quality.
We will assist you with all testing and promote it for free on your country and website, and support customization! As a leading Woodworking machineryare manufacturer, We understand the doubts and problems that customers have when purchasing woodworking machinery,That's why we have tailored our products to alleviate these concerns and provide unparalleled value.

9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
0404 edge banding machine

High-speed fully automatic edge banding machine

The new 0404 edge banding machine automatic edge banding machine is suitable for board shops and small processing factories, with vertical display control panels. Hand-cranked digital display adjustment pressure beam height. The use of large-capacity glue pot can be continuously sealed with continuous edge sealing. Just enter the straight plate, pass gluing, pressing, rough trimming, end trimming, corner trimming, large diameter vacuuming, secondary scraping and buffing. The plate is molded at one time.

Outline dimension 5000*750*1500mm Conveyor speed 18~24m/min
Machine weight 1500KG Minimum width of board 50mm
Working voltage 380V/50Hz Minimum length of board 70mm
Total power 13.5KW Woking pressure 0.7Mpa
Plate thickness 10~60mm Edge banding thickness 0.3~3mm
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
1. Encoder Control all actions of the whole machine, with sensitive response and low failure rate.

2.Intelligent control The standard plc microcomputer control adopts the principle of time control, greatly improving stability and safety.

3.Pre-milling Double milling cutters are used to trim the edges of textured, deburred, or non vertically cut sheets for better edge sealing.

4.Glue can The glue coating device heats hot melt adhesive through a glue tank and uses a suction structure to evenly apply glue, ensuring strong adhesion.

5.End cutting The edges of the wooden board are cut using single guide rails at both ends of the chessboard.

6.Fine trimming High speed oblique cutting motor, adjustable for easier operation, alloy disc ensures smoothness and stability

9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
Offline after-sales service Spread across Europe, Latin America, Asia, Africa and other countries Long warranty period and Free complimentary accessories
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels
9 Functions Auto Edge Banding Machine 13.5kw Power For Wood Based Panels

FAQ
Q1:Can customized services be supported?
A1:Yes, we can customize the color, size and logo you need

Q2:Where is your factory located?
A2:We are a chinese manufacturer in qingdao city, shandong province

Q3:Can you make the machine according to my design or prototype?
A3:Yes. We have an professional designer for working out the most suitable Design and production plan for the machine that you are going to book with us

Q4: This is the first time I use this kind of machine, is it easy operate?
A4: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

Q5:What’s your MOQ and delivery?
A5:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

Q6: How is your after sales service?
A6: Our sales are online for 24-hours. We can also supply overseas install service.

Q7: If my machine is broken. Can you repair it for me?
A7: Yes. We have free training online.

If there is big trouble with your machine in the warranty time, we can repair it.
